Matching Wood Texture in a Coffee Machine Appearance Prototype
When it comes to appearance prototypes, especially for consumer appliances like coffee machines, getting the “look and feel” right is critical. Many customers want early-stage prototypes to reflect not only the shape but also the surface textures of the final product — and wood textures are one of the most requested and most difficult effects to reproduce.

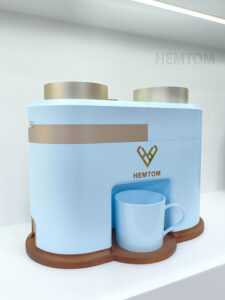

In one recent project, our client asked us to replicate a realistic wood grain finish on the bottom base panel of their new coffee machine design. They provided a complete 3D drawing, along with reference images for the desired wood appearance. However, they also made it clear that using real wood was not acceptable due to structural and production concerns.
Why Go for a Wood-Look Base Panel?
Many high-end home appliances use wood finishes to add warmth, style, or a natural aesthetic to the design — and the coffee machine was no exception. The base panel was meant to be visible, handle weight, and set the tone for the entire device.
But matching real wood’s irregular grain and feel — especially on a plastic or metal substrate — is no small task. It requires a careful combination of materials, surface finishing, and craft.
Step 1: Understanding the Drawing and Finish Requirements
Since Hemtom does not provide product design services, all our prototype work is based strictly on the customer’s supplied drawings and requirements.
In this project, the STP files showed a flat rectangular base panel that would serve as the structural foundation of the coffee machine. The client specified that this base should visually resemble medium-tone wood with visible grain but also have enough mechanical strength to support the rest of the assembly.
They also sent a wood texture reference image, which we used to extract tone, grain pattern direction, and sheen level preferences.
Step 2: Choosing the Right Material and Finish Strategy
At first, the client considered using real wood veneer. After discussing the pros and cons, we recommended switching to ABS plastic combined with a sprayed wood finish. Here’s why:
| Factor | Real Wood Veneer | ABS Plastic + Wood Texture Finish |
|---|---|---|
| Dimensional Stability | Prone to warping | Highly stable |
| Consistency | Natural variation | Controlled, uniform finish |
| Processing Complexity | High | Moderate |
| Cost | High | Mid-range |
| Surface Durability | Low without sealing | High with UV coating |
This switch also made future small-batch production more feasible, since ABS is easier to replicate and finish consistently.

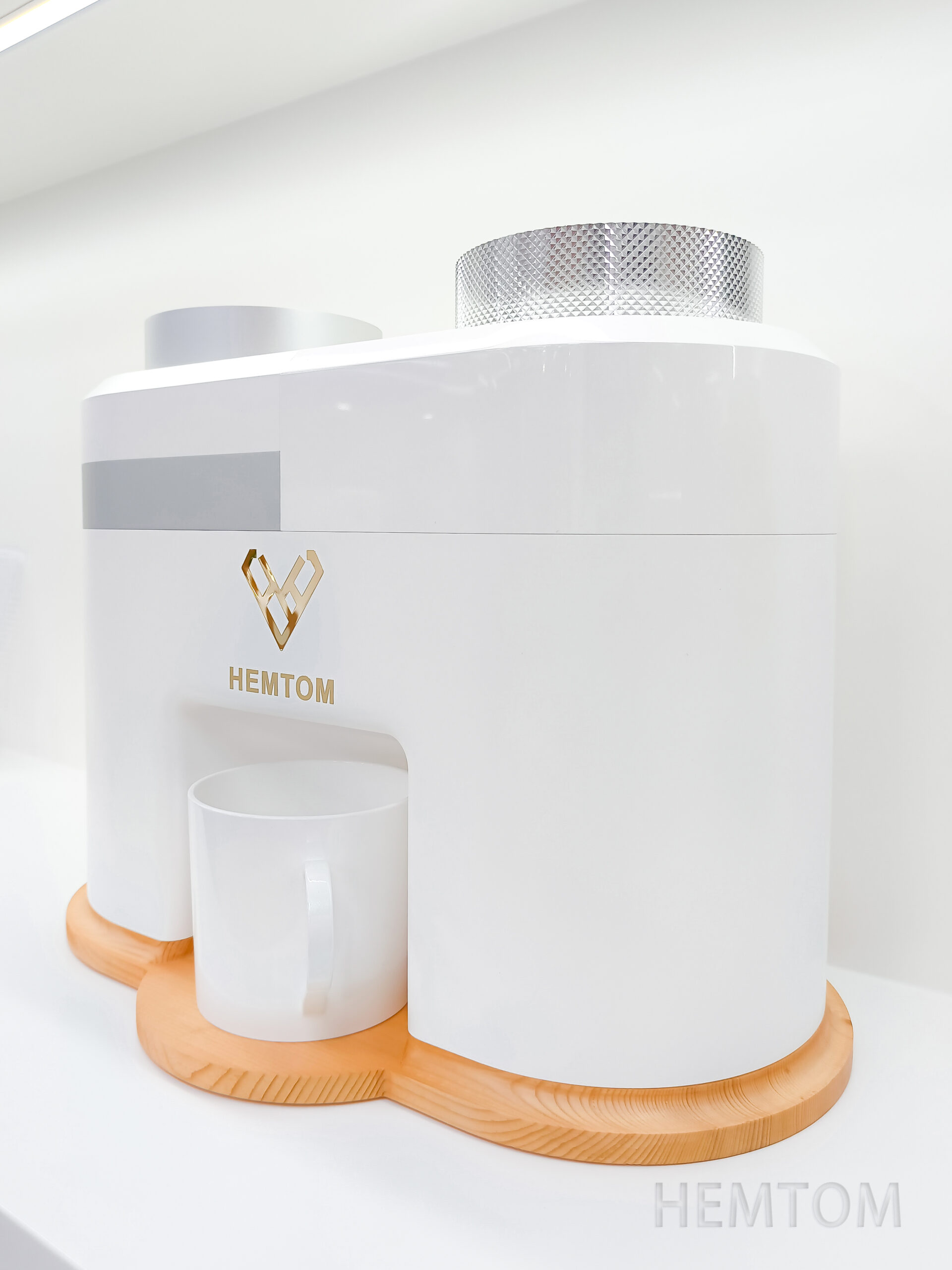

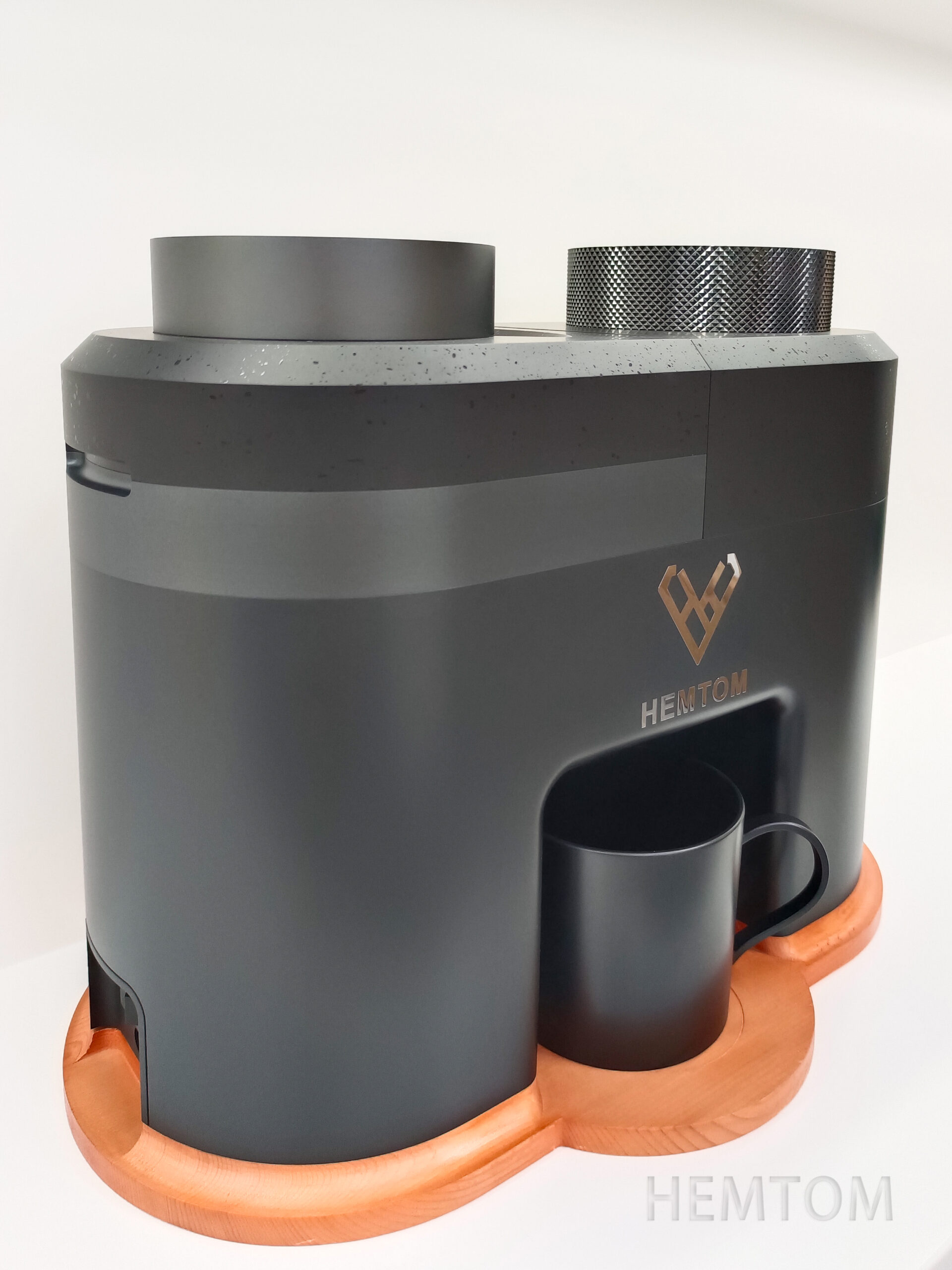

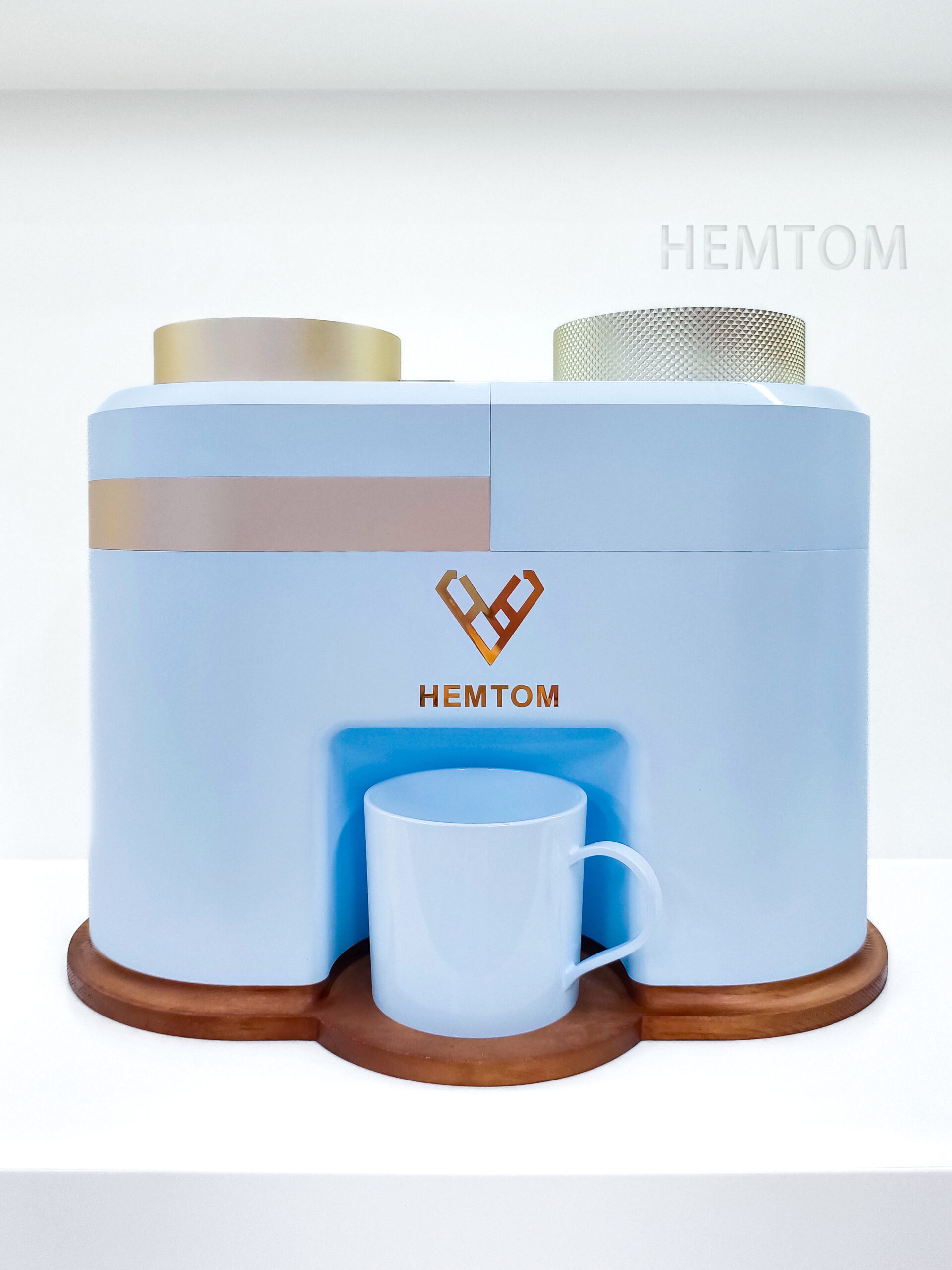

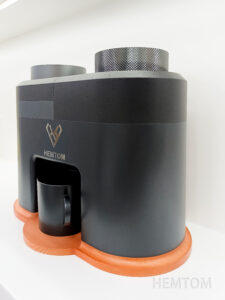

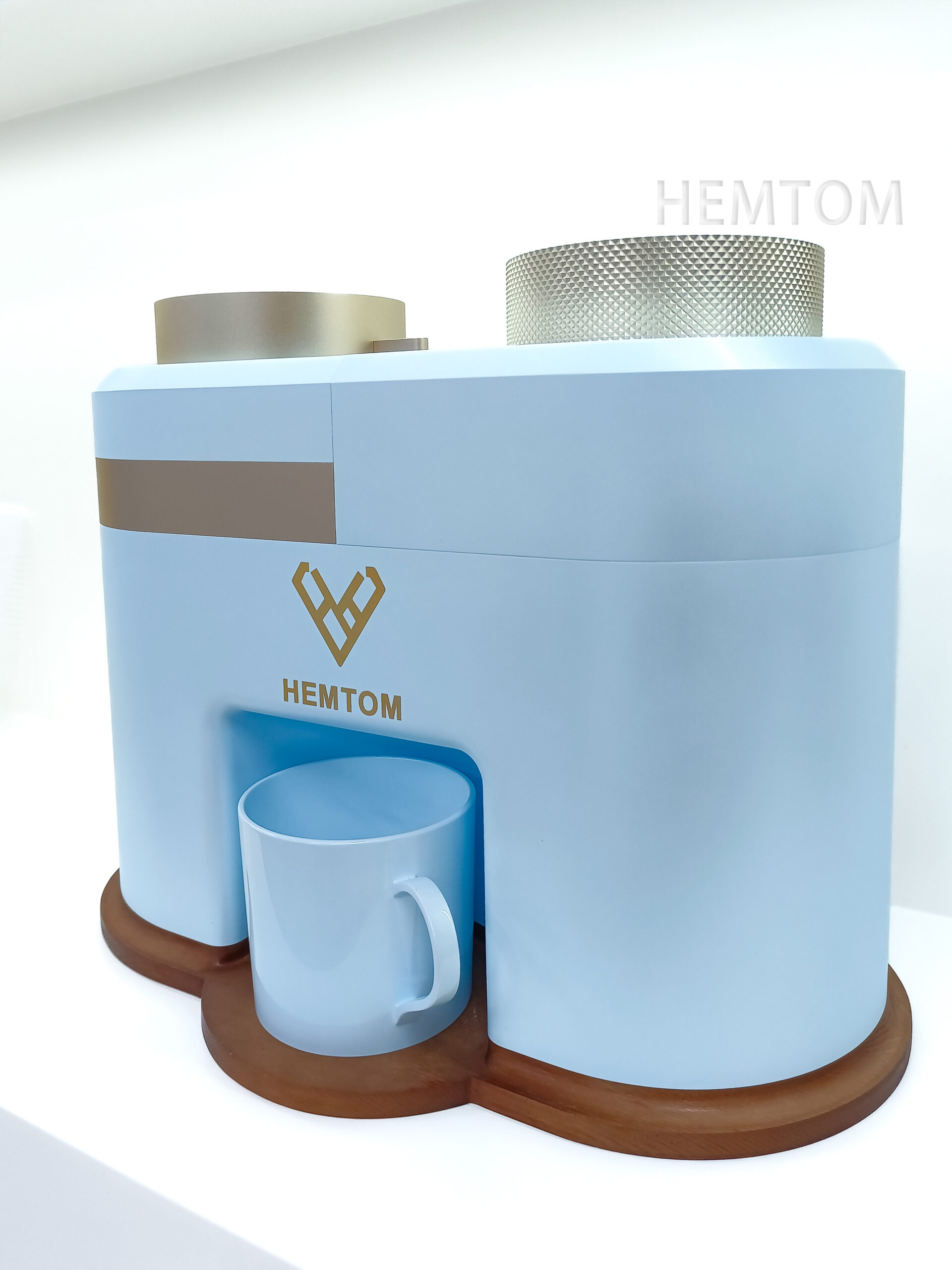

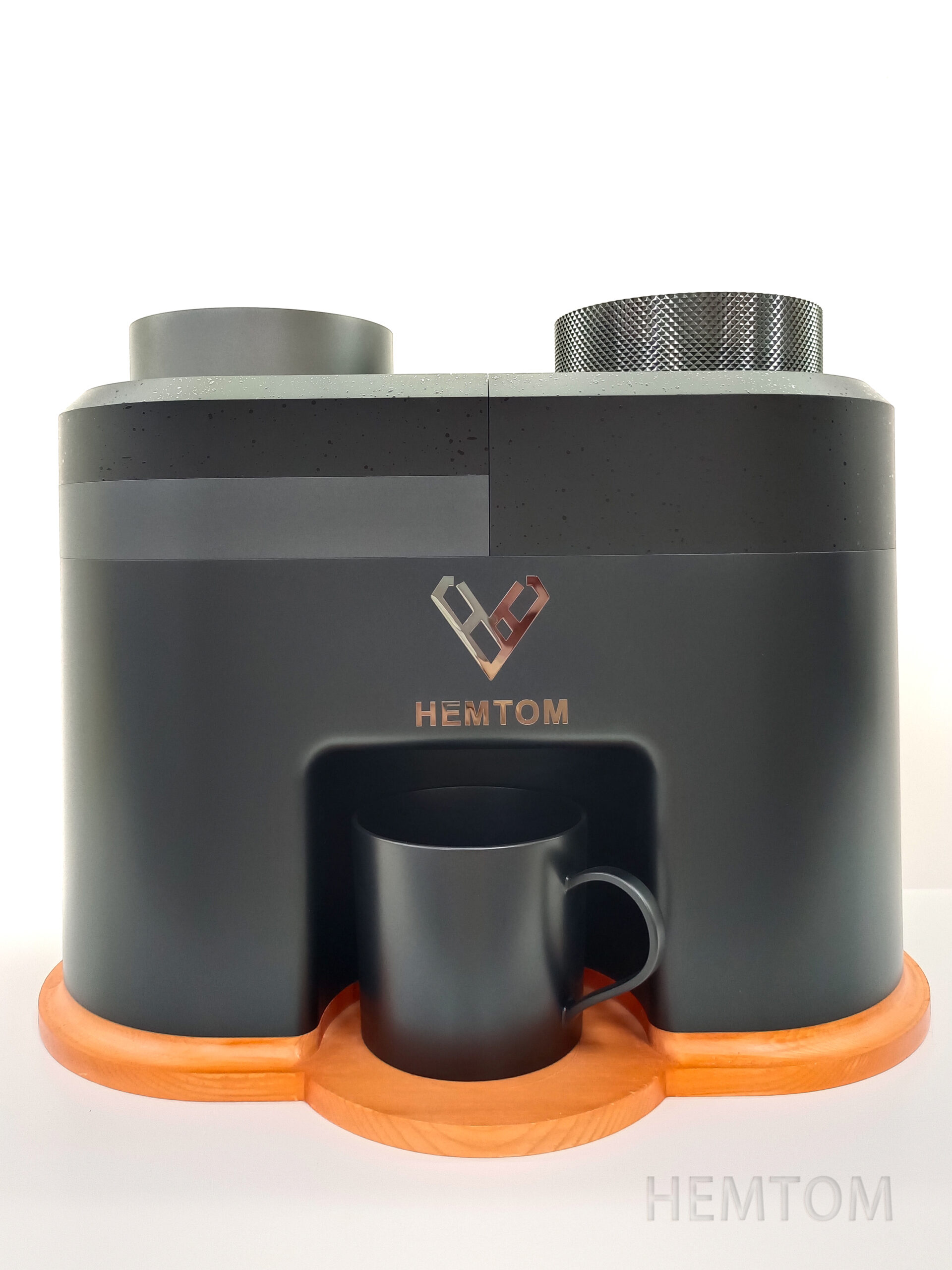

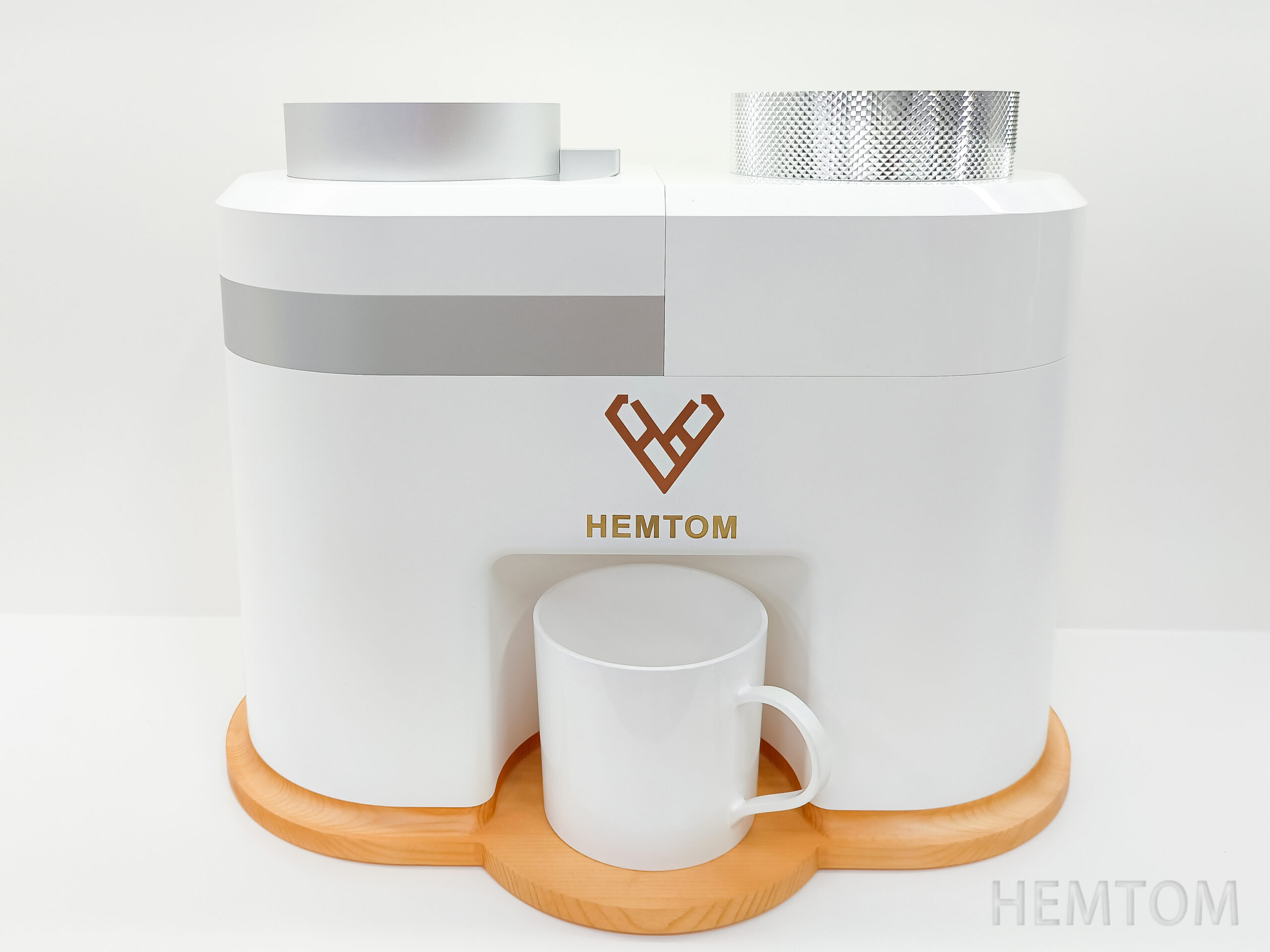

Step 3: Reproducing the Wood Texture on the Base Panel
To achieve a convincing wood texture, we used a water transfer printing (hydrographics) process, followed by a matte UV protective coating. This allowed us to print highly detailed grain patterns onto the ABS surface and then seal the finish to resist wear and discoloration.
We created two versions of the base panel sample:
Glossy wood effect – deeper colors, strong reflections, more “plastic-like” look
Matte brushed wood effect – more natural, subtle finish with light texture and better fingerprint resistance
After review, the client chose the matte brushed version, which more closely mimicked natural wood while offering better durability. We also added micro-brushed texturing to enhance the feel when touched.
Structural Support with CNC Precision
Although the base panel’s focus was on aesthetics, it still needed to support other components. We CNC-machined the aluminum inner frame that connects to the ABS base to ensure tight tolerances and stability.
Using our CNC machines, we maintained dimensional accuracy within ±0.05mm — critical for assembling multiple coffee machine parts without interference or gaps.
Final Outcome and Client Feedback
The client was satisfied with the results for three main reasons:
The wood texture on the base panel matched their reference images closely
The sprayed ABS surface had good color consistency and wear resistance
The structural integration between the CNC frame and the panel worked seamlessly
They approved a small batch production of 30 units for early market trials and internal demos.
Tips for Designers Working on Appearance Prototypes
Think about manufacturing early – Don’t wait until the design is done to consider finish and materials
Always provide clear finish references – Images, color codes, and sheen preferences help a lot
Balance looks and structure – Especially for parts like a base panel that serve both roles
Appearance models aren’t the same as mass production – Prioritize visual impact and realistic feel, but don’t overcomplicate
Summary: Wood Texture Without the Wood Problems
Simulating a wood grain look on a technical part like a coffee machine base isn’t magic — it’s a mix of the right materials, a clear finish plan, and precise craftsmanship. With experience in small batch prototyping and surface finishing, Hemtom helps bridge the gap between design ideas and real-world, manufacturable models.
