In the fast-paced world of product development, transforming a concept into a tangible reality requires careful planning and execution. Prototyping plays a crucial role in this journey, allowing engineers and designers to test, refine, and validate their ideas before moving into full-scale production. Two of the most popular and versatile prototyping methods today are 3D printing and CNC machining, each offering unique advantages depending on the project’s specific needs.
Hemtom, with over 20+ years of experience as a leading rapid prototyping provider, understands the critical role that choosing the right manufacturing method plays in bringing your product vision to life. We’re here to guide you through the nuances of 3D printing and CNC machining, empowering you to make informed decisions that align with your project goals and budget.
Before we dive into the comparison, let’s demystify the core principles behind these two popular prototyping methods:
3D Printing: Building Layer by Layer
Imagine a highly precise glue gun that follows digital instructions to build your desired object from the ground up. That’s the essence of 3D printing, also known as additive manufacturing. This process starts with a 3D computer-aided design (CAD) model, which is sliced into thin, horizontal layers by specialized software. The 3D printer then deposits or solidifies material layer upon layer, following the precise geometry of your design, until the complete object is formed. It’s like building a sculpture with thousands of tiny, carefully placed pieces.

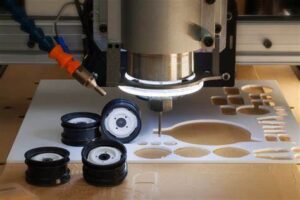

CNC Machining: Sculpting from a Solid Block
Think of a miniature, automated workshop where computer-controlled cutting tools meticulously carve away material to reveal your desired shape. That’s CNC machining in a nutshell. Short for Computer Numerical Control, this process also starts with a CAD model. The CNC machine, guided by the digital instructions, uses rotating cutting tools to remove material from a solid block or sheet, gradually shaping it into the final product. It’s like a sculptor chipping away at a block of marble to reveal the masterpiece within.

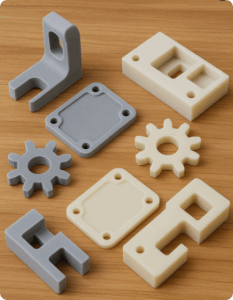

3D Printing vs. CNC Machining: A Side-by-Side Comparison
To help you visualize the strengths and weaknesses of each prototyping method, let’s put them head-to-head across key factors:
| Feature | 3D Printing | CNC Machining |
| Cost-Effectiveness | Lower upfront costs: Ideal for low-volume prototypes and intricate designs where tooling costs for CNC would be prohibitive. Material efficiency: Minimal material waste as only the required amount is used. Cost increases with size: Larger parts require more material and printing time, increasing cost. | Higher upfront costs: Initial setup and tooling can be expensive, but cost per part decreases with higher volumes. Material waste: The subtractive process generates material waste, impacting cost. Cost-effective for larger runs: Becomes more economical than 3D printing for larger production runs. |
| Lead Time | Faster for complex designs: No need for tooling; intricate designs can be printed directly from CAD files. Shorter lead times: Prototypes can be produced within hours or days, depending on complexity and size. | Longer lead times: Tooling design and fabrication can add significant time to the process. Lead time increases with complexity: Complex parts with intricate features require more machining time. |
| Design Flexibility | Unparalleled freedom: Can create highly complex geometries and intricate internal features that are impossible with traditional manufacturing. Ideal for organic shapes: Excels at producing free-form shapes and complex curves. | Limited by tool access: Complex internal features or undercuts might require specialized tooling or multi-axis machining. Challenging for organic shapes: Creating smooth, flowing curves can be difficult and time-consuming. |
| Material Selection | Growing material library: Wide range of plastics, resins, and some metals available, including specialized materials with specific properties. Limited material strength: Some 3D printing materials might not be as strong or durable as those used in CNC machining. | Extensive material options: Vast selection of metals, plastics, and other machinable materials with a wide range of properties. High-performance materials: Access to materials with superior strength, durability, and heat resistance. |
| Surface Finish and Accuracy | Variable surface quality: Surface finish can be rough, requiring post-processing (sanding, polishing) for a smooth finish. Accuracy depends on printer: Resolution of the 3D printer dictates the level of detail and dimensional accuracy. | High surface finish: Achieves smooth, precise surfaces often suitable for functional prototypes and end-use parts. High dimensional accuracy: CNC machining offers tight tolerances and excellent repeatability. |
Now that you understand the key differences between 3D printing and CNC machining, let’s navigate the decision-making process to determine the optimal method for your specific prototyping needs.
Project Budget: Balancing Cost and Value
- Tight Budget, Low Volume: If you’re working with limited funds and need a small number of prototypes, 3D printing offers a cost-effective solution, especially for complex designs.
- Larger Budget, Higher Volume: For larger production runs or projects with more financial flexibility, CNC machining’s ability to produce parts at a lower cost per unit becomes increasingly attractive.
Timeline Requirements: Speed vs. Process
- Urgent Prototyping Needs: When time is of the essence, 3D printing’s rapid turnaround times can be a game-changer, allowing you to iterate quickly and meet tight deadlines.
- Flexible Timeline: If your project timeline allows for tooling and machining time, CNC machining provides the advantage of high accuracy and a wider selection of materials.
Design Complexity: Simple vs. Intricate Geometries
- Intricate Designs, Organic Shapes: 3D printing truly shines when it comes to complex geometries, intricate details, and free-form shapes that would be challenging or impossible to achieve with traditional machining.
- Simple Designs, Straightforward Features: For prototypes with simpler geometries and features easily accessible by cutting tools, CNC machining offers high precision and a wide range of material choices.
Material Properties: Strength, Durability, and Functionality
- Functional Prototypes, High-Performance Materials: If your prototype requires specific material properties like high strength, durability, heat resistance, or chemical resistance, CNC machining offers a wider selection of suitable materials, including metals.
- Visual Prototypes, Design Exploration: 3D printing provides access to a growing library of plastics and resins with varying properties, making it suitable for visual prototypes, form studies, and design iterations.
Required Accuracy and Finish: Precision vs. Aesthetics
- High Precision, Smooth Surfaces: When your prototype demands tight tolerances, smooth surface finishes, and dimensional accuracy suitable for functional testing or end-use applications, CNC machining is the preferred method.
- Visual Representation, Concept Validation: If the primary goal is to create a visual representation of your design for presentations or early-stage testing, 3D printing’s surface finish, while often requiring post-processing, can be sufficient.
Hemtom: Your One-Stop Shop for Prototyping Solutions
Navigating the world of prototyping can feel overwhelming, but it doesn’t have to be. At Hemtom, we’re your trusted partner, offering comprehensive prototyping solutions tailored to your unique project needs.
We’ve honed our expertise in both 3D printing and CNC machining over 20 years, equipping us to handle a wide range of prototyping challenges. Whether your project demands the intricate geometries achievable with 3D printing or the high precision and material selection offered by CNC machining, our team of skilled engineers and technicians will guide you toward the optimal solution.
In addition to our core 3D printing and CNC machining capabilities, we also provide:
- Sheet Metal Fabrication: For prototypes requiring custom enclosures, brackets, or other sheet metal components.
- Vacuum Casting: For creating small-batch replicas of master prototypes with high fidelity and a variety of material options.
At Hemtom, we’re committed to delivering:
- Fast Turnaround Times: We understand the importance of speed in prototyping and strive to deliver your projects on time and within budget.
- Exceptional Quality: We adhere to rigorous quality control standards at every stage of the process, ensuring your prototypes meet the highest levels of accuracy and finish.
- Competitive Pricing: We believe that high-quality prototyping should be accessible, and we offer competitive pricing without compromising on the quality of our work.
Making the Right Choice for Your Prototyping Success
Ultimately, the best prototyping method depends entirely on your project’s unique requirements. By carefully considering your budget, timeline, design complexity, material needs, and desired accuracy, you can make an informed decision that sets your project up for success.
Ready to Bring Your Product Vision to Life?
Contact Hemtom today to discuss your prototyping needs! Our team of experts is here to answer your questions, provide guidance, and help you choose the ideal prototyping method to transform your ideas into tangible realities.
