Understanding Plastic Prototypes and Their Importance
When developing a new product, creating prototypes is an essential step. A plastic prototype is a physical model made using plastic materials to test design, fit, and function before full production. These prototypes help engineers, designers, and manufacturers identify potential issues early and refine the product.
Choosing the right plastic material for your prototype is crucial. The material affects how accurately the prototype represents the final product, how durable it is during testing, and how much it costs to produce. Two popular plastics for prototyping are ABS (Acrylonitrile Butadiene Styrene) and Polycarbonate (PC). Understanding their differences can save you time and money while improving the quality of your prototypes.

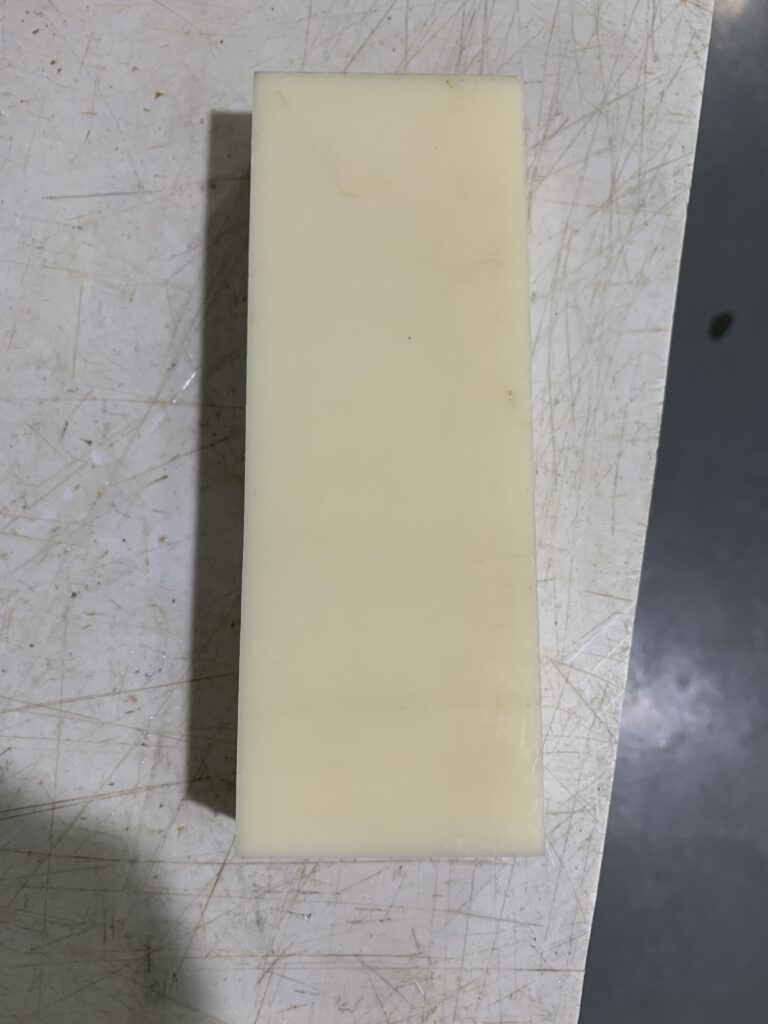

Overview of ABS Plastic for Prototypes
Physical Properties of ABS
ABS is a widely used thermoplastic known for its good strength, toughness, and heat resistance. It offers a balance between rigidity and impact resistance, making it suitable for many applications where durability is required but some flexibility helps absorb shocks.
Advantages of Using ABS in Prototyping

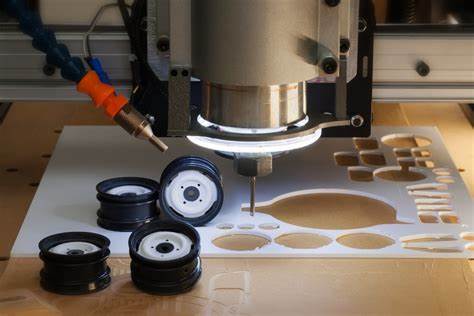

One of ABS’s biggest advantages is its ease of machining and molding. It can be quickly shaped through CNC machining, injection molding, or 3D printing methods. ABS is also cost-effective, which makes it ideal for prototypes on a budget.
Common applications include housings for electronics, automotive parts, and consumer goods where moderate strength and good surface finish are important. For example, if you’re prototyping a plastic case for a handheld device, ABS is often the first choice due to its balance of cost and performance.
Limitations of ABS
However, ABS has some downsides. It does not resist UV light well, so prolonged exposure to sunlight can cause it to yellow and degrade. Its chemical resistance is moderate, meaning it may be damaged by some solvents or oils. Also, while the surface finish is generally good, it is not as smooth or glossy as some other plastics, which might be a factor if aesthetics are critical.

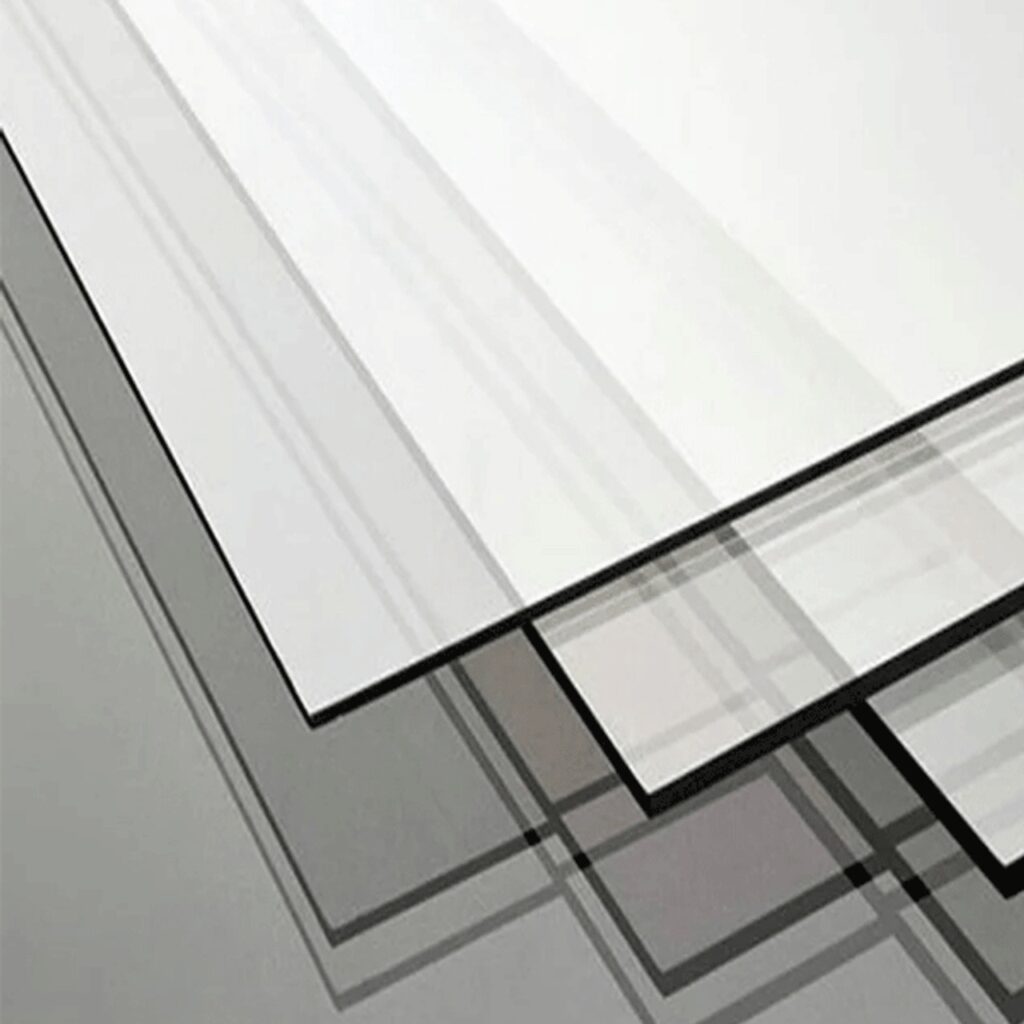

Overview of Polycarbonate for Prototypes
Physical Properties of Polycarbonate
Polycarbonate is a tough, high-strength plastic with excellent impact resistance and optical clarity (it can be transparent). It performs well under extreme temperatures and has good dimensional stability.
Advantages of Using Polycarbonate in Prototyping
Polycarbonate’s strength and durability make it suitable for functional prototypes that undergo stress or impact testing. Its transparency is a big plus when prototypes need to showcase internal components or for parts like lenses and protective shields.
It is also resistant to heat and cold, making it suitable for parts exposed to harsh environments. For example, automotive headlight lenses or clear protective covers are often prototyped using polycarbonate.
Limitations of Polycarbonate
Polycarbonate is generally more expensive than ABS and can be harder to machine due to its toughness. It may also be more sensitive to scratching and requires careful finishing. Its higher cost means it may not be the best choice for simple, low-cost prototypes.
Comparing ABS and Polycarbonate for Plastic Prototypes
Mechanical Performance Comparison
| Feature | ABS | Polycarbonate |
|---|---|---|
| Strength | Good | Excellent |
| Impact Resistance | Moderate | Very High |
| Heat Resistance | Moderate | High |
| Cost | Lower | Higher |
| Ease of Machining | Easy | More Difficult |
| Surface Finish | Matte to Semi-gloss | Glossy and Transparent |
| UV Resistance | Poor | Better |
| Chemical Resistance | Moderate | Good |
Cost and Manufacturing Considerations
ABS is generally cheaper and easier to work with, making it suitable for quick, budget-friendly prototypes. Polycarbonate’s higher material and machining costs are offset when durability and clarity are priorities.
Manufacturing speed can vary: ABS parts are quicker to machine and mold, while polycarbonate requires more care, which can increase production time and cost.
Visual Appearance and Finishing
If your prototype needs a glossy or transparent look, polycarbonate is the better choice. ABS offers a decent finish but usually requires post-processing like painting or polishing for a high-end appearance.
How to Choose the Right Plastic for Your Prototype
Consider Your Prototype’s Purpose
-
For functional testing that requires strength and durability, especially under impact, polycarbonate is often the go-to material.
-
For concept models, visual mockups, or less demanding functional parts, ABS is usually sufficient.
Budget and Production Volume
If you’re producing a small batch or single prototype on a tight budget, ABS is a cost-effective choice. For higher-end or specialized prototypes, where performance is critical, investing in polycarbonate can save development time.
Compatibility with Manufacturing Processes
Both materials work with CNC machining and injection molding. ABS tends to be more forgiving in 3D printing. Polycarbonate printing requires advanced equipment and expertise.
Frequently Asked Questions (FAQ)
Q1: Which plastic handles heat better, ABS or polycarbonate?
Polycarbonate has higher heat resistance and performs better in hot environments.
Q2: Which material is better for clear or transparent parts?
Polycarbonate is naturally transparent and ideal for clear parts; ABS is opaque.
Q3: Are both materials environmentally friendly?
Both are thermoplastics and can be recycled, but polycarbonate is generally more challenging to recycle.
Q4: Which is easier to machine or mold?
ABS is easier and faster to machine, while polycarbonate requires more precise handling.
Conclusion: Finding the Best Plastic Prototype Material for Your Needs
Both ABS and polycarbonate have their strengths. ABS is the budget-friendly, versatile choice that suits many prototyping needs, especially for visual models and moderate-function parts. Polycarbonate excels when you need toughness, clarity, and heat resistance.
At Hemtom, we specialize in producing high-quality prototypes using both materials. We work from your drawings to optimize the process and ensure your prototype meets your exact needs. Choosing the right plastic helps you avoid costly redesigns and speeds up your product development.
